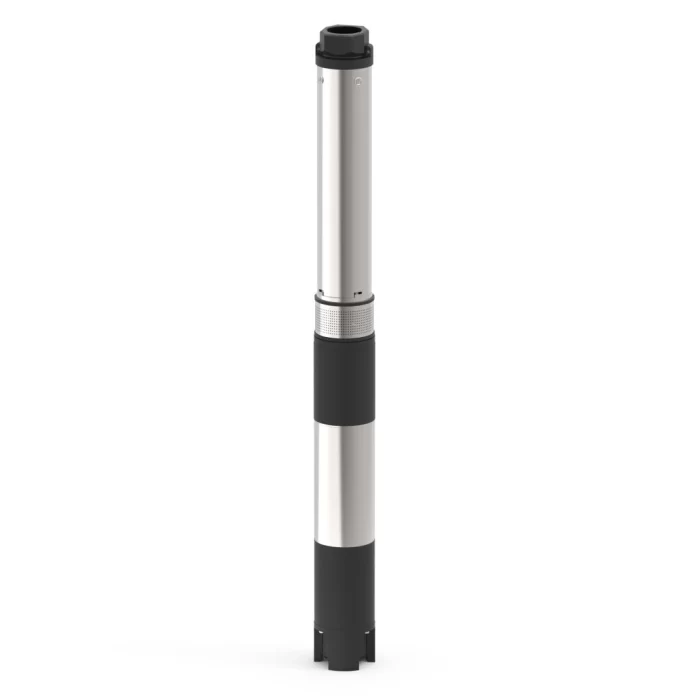

6Hp 60 Stage Lubi Borewell Pump 4inches Three Phase (Noryle Pump) Water Filled LKT-7

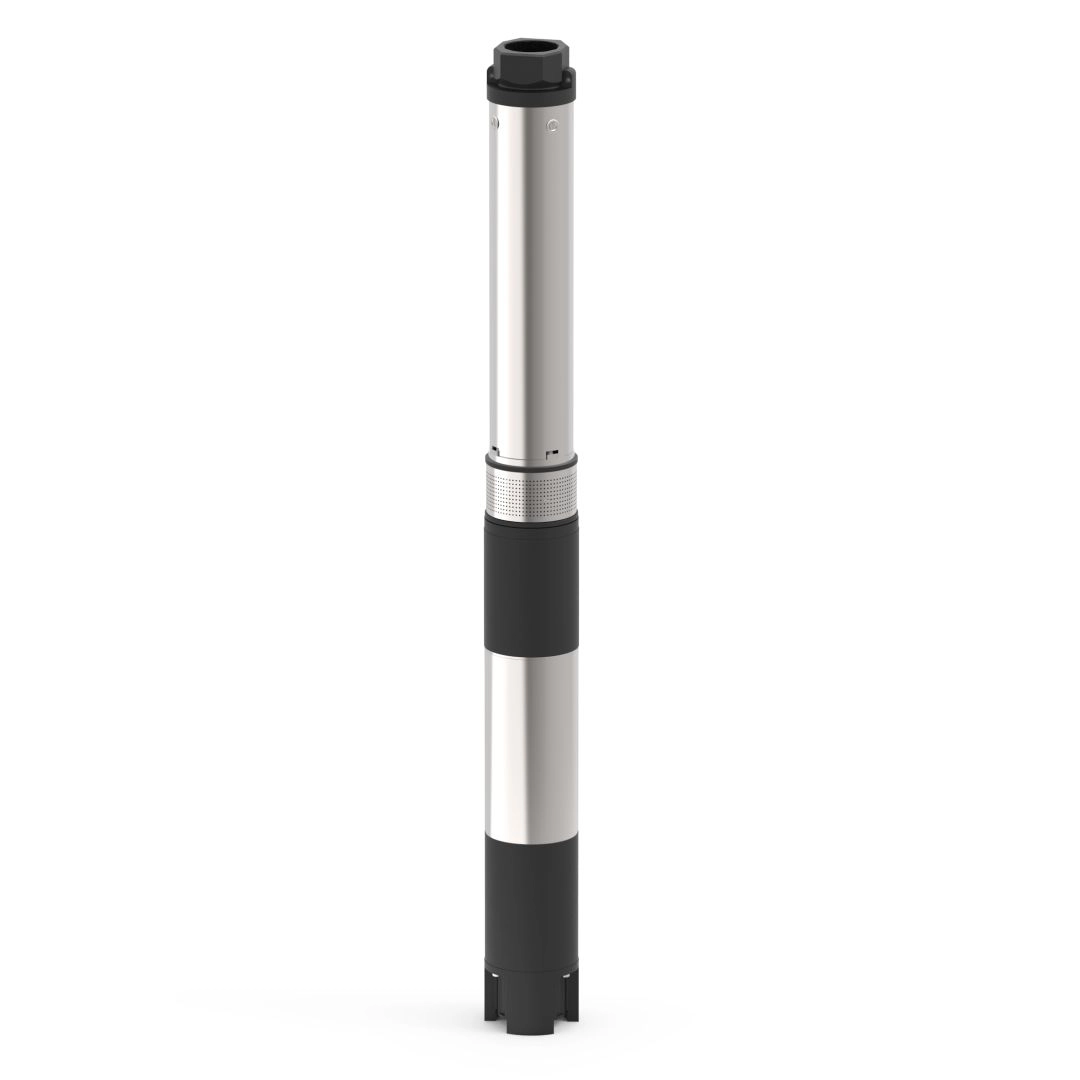

6Hp 60 Stage Lubi Borewell Pump 4inches Three Phase (Noryle Pump) Water Filled LKT-7 - Image 2
6Hp 60 Stage Lubi Borewell Pump 4inches Three Phase (Noryle Pump) Water Filled LKT-7 - Image 3
6Hp 60 Stage Lubi Borewell Pump 4inches Three Phase (Noryle Pump) Water Filled LKT-7 - Image 4
Borewell Pumps

6Hp 60 Stage Lubi Borewell Pump 4inches Three Phase (Noryle Pump) Water Filled LKT-7

₹ 42,500

Delivered Only in Bangalore

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Exchange
  • Check Mark Shipping as per porter charges
  • Pumps & Motors Dealers in Bangalore
Category: Brand:

✅ Pump Model: LKT-7

Stages: 60  Power: 4.40 kW (6.00 HP)  Speed: 2880 rpm

Outlet Size: 32 mm (1¼”)

Discharge (LPM) 28 35 42 48 55 60 72 85 90
Head (Metres) 408 390 355 305 260 225 155 70 28

🔧 Performance Highlights:

  • High head delivery: 408 metres at 28 LPM

  • Optimal mid-flow: 305 metres at 48 LPM

  • Wide range: Suitable for varying discharge needs

⚠️ Note:

Performance may vary depending on actual site conditions including voltage supply, installation setup, water source, and pipe configuration.

 Note: Performance may vary depending on actual site conditions such as voltage, suction depth, pipe diameter, and water table level.

  •  Images are shown for reference purposes only. Actual product appearance may vary.
    Installation must be done by a qualified technician.

Warranty for Lubi Borewell Pumps:

Lubi Borewell pumps come with a 2-year warranty, which includes 2 free services. For the 3rd service and beyond, charges will apply. Please note that the warranty is covered directly by Lubi and not by the seller.

The warranty covers any manufacturing defects under normal operating conditions. It does not cover damages resulting from improper installation, misuse, or natural wear and tear. Customers must take the pump to an authorized service center for service under the warranty.

For more details on warranty terms, please refer to the product documentation.

Features

Precision-Engineered for Reliable Performance

Our pumpsets are built with precision and durability in mind. Every component is crafted from high-quality materials conforming to Indian Standard Specifications and is machined using advanced technology, including state-of-the-art CNC machines. This ensures long-lasting, reliable performance even under demanding conditions.

Robust Motor Design

  • Operates efficiently under wide voltage fluctuations

  • Features high-quality sleeve and thrust bearings for extended life

  • Stator and rotor are vacuum impregnated and corrosion-resistant coated for enhanced durability

Superior Efficiency & Performance

  • High operating efficiency ensures greater water discharge and reduced power consumption

  • Dynamically balanced rotating components guarantee smooth, vibration-free operation and longer bearing life

Compact & Easy Installation

  • Slim, space-saving design

  • Easily installed in narrow wells and confined spaces

Experience unmatched reliability, performance, and efficiency — engineered for excellence.

Material of Construction

Component Material / Features
Motor Body Stainless Steel, offering durability and corrosion resistance
Stator Vacuum impregnated and epoxy coated; thick end laminations protect motor windings
Rotor Sandblasted and coated with polyurethane paint for corrosion resistance; dynamically balanced
Windings PVC / Polyester insulated, water-cooled
Journal Bearings Leaded Bronze and Stainless Steel; water-lubricated for high load-bearing capacity
Thrust Bearings Special self-aligning, water-lubricated; withstands high axial thrust loads
Pressure Equalizing Diaphragm Adequately sized to allow water expansion and prevent loss of cooling water
Impeller High-quality, abrasion-resistant Noryl / Stainless Steel; dynamically balanced
Bowl High-grade Noryl / Cast Iron
Wear Rings High-quality, abrasion-resistant Polyurethane (P.U.) / Rubber
Shaft Stainless Steel with adequate diameter; ground to close tolerances for rigidity
Suction Casing Perforated Stainless Steel Strainer; allows water intake with minimal friction
Cable Sealing Arrangement Designed to prevent entry of sand-laden borewell water into the motor

Salient Features

  • Precision machined on modern CNC equipment for consistent quality

  • High efficiency and energy-saving performance

  • Corrosion-resistant coatings and materials extend service life

  • Dynamically balanced components ensure vibration-free operation

  • Compact, slim design for installation in narrow borewells

  • Special sealing design prevents ingress of sand and contaminants

  • Heavy-duty thrust and journal bearings for longer life under demanding conditions

Applications

  • Water Supply Systems

  • Civil and Industrial Water Management

  • Fire Fighting Systems

  • Agricultural and Drip Irrigation

Note: Certain features and materials apply to selected models only.
